Model:IN-TP0002

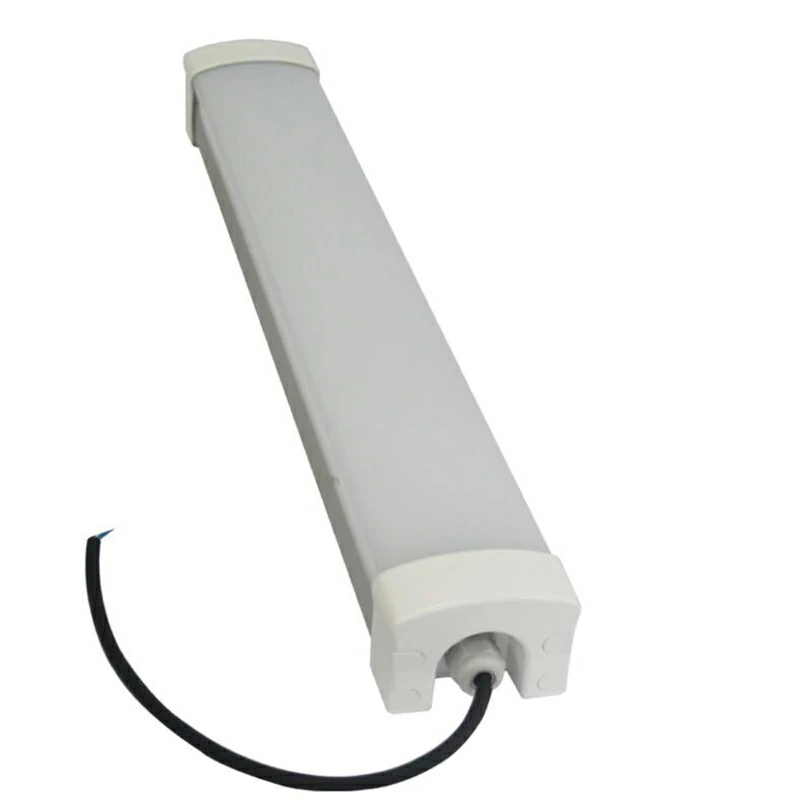

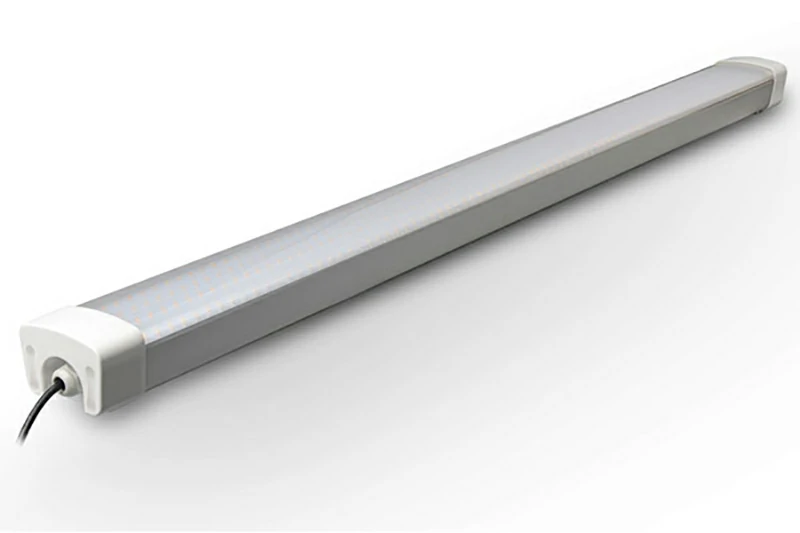

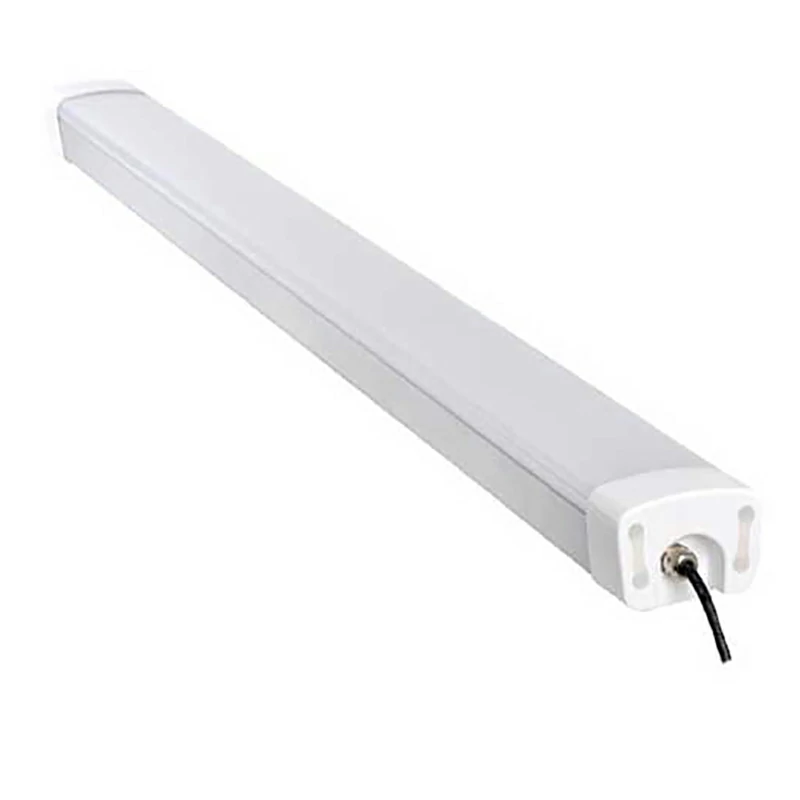

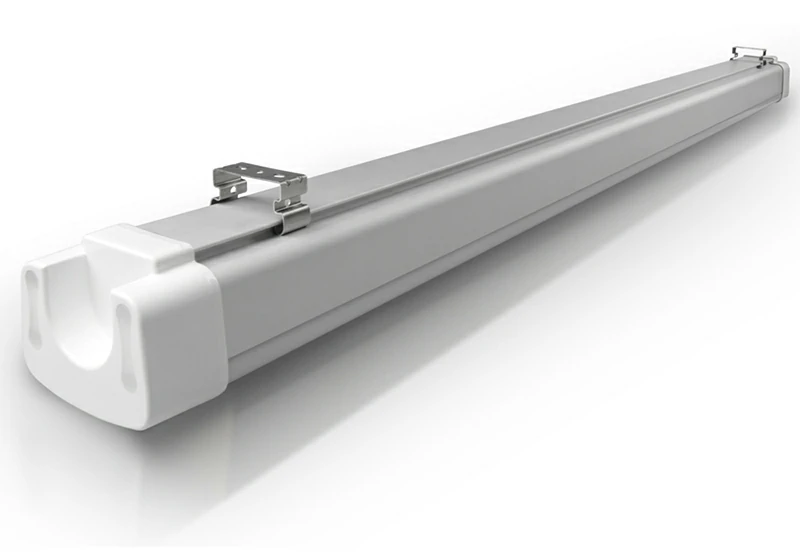

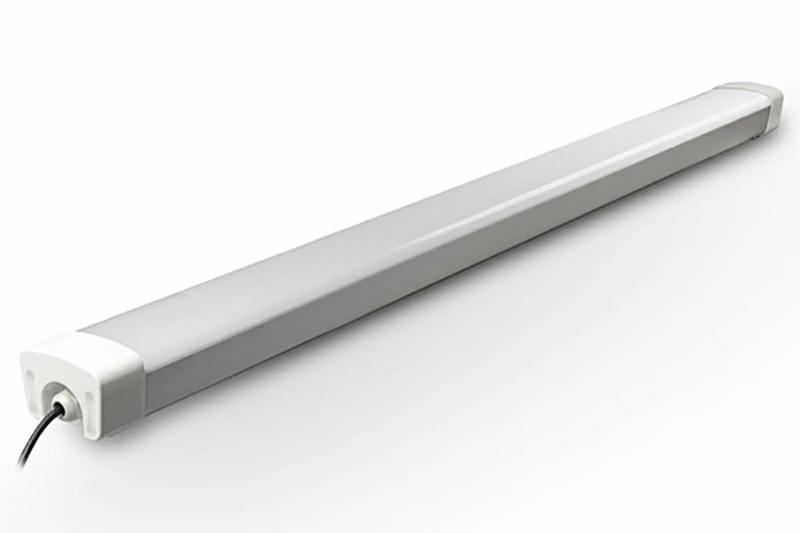

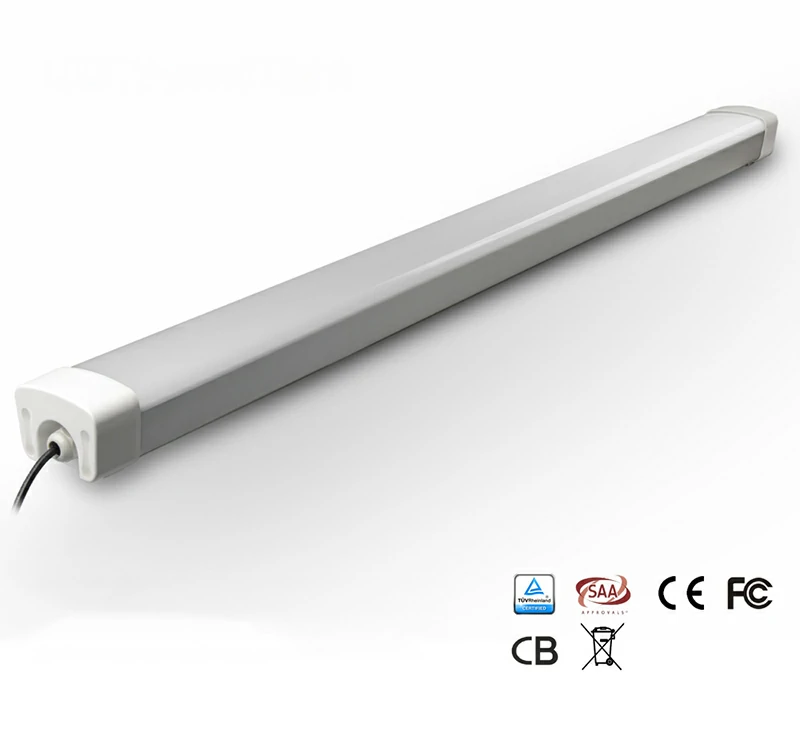

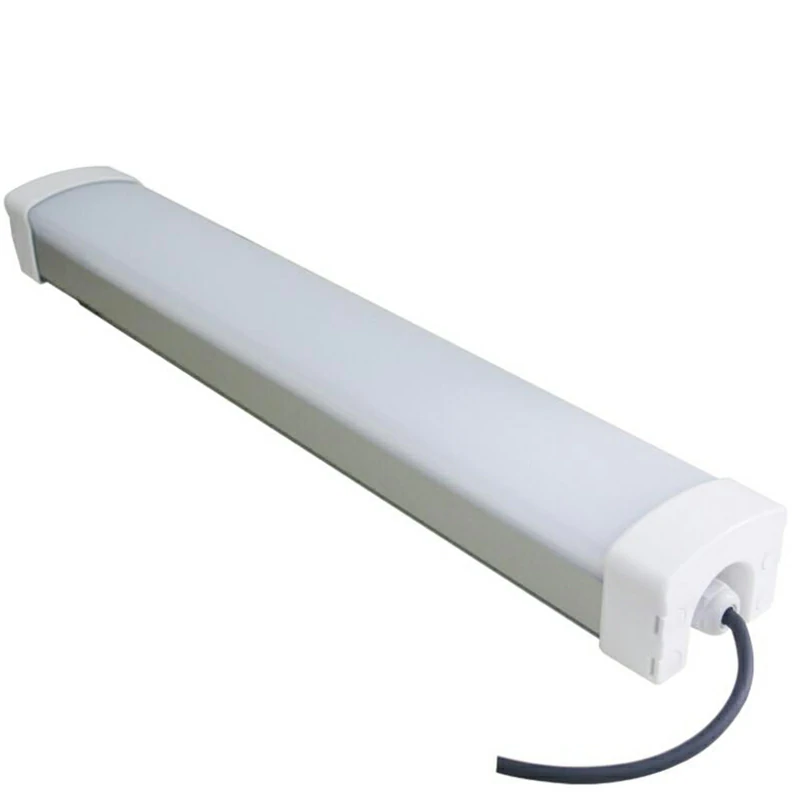

LED Tri-proof Light

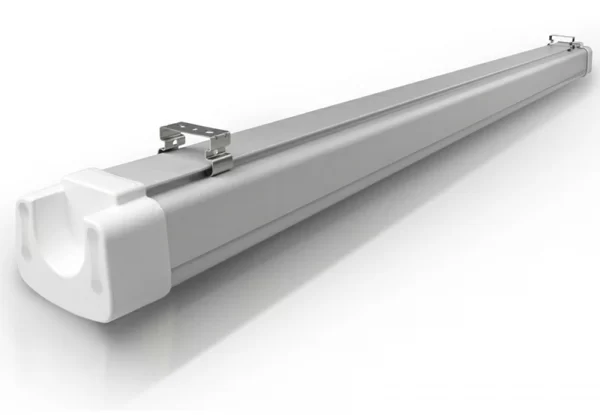

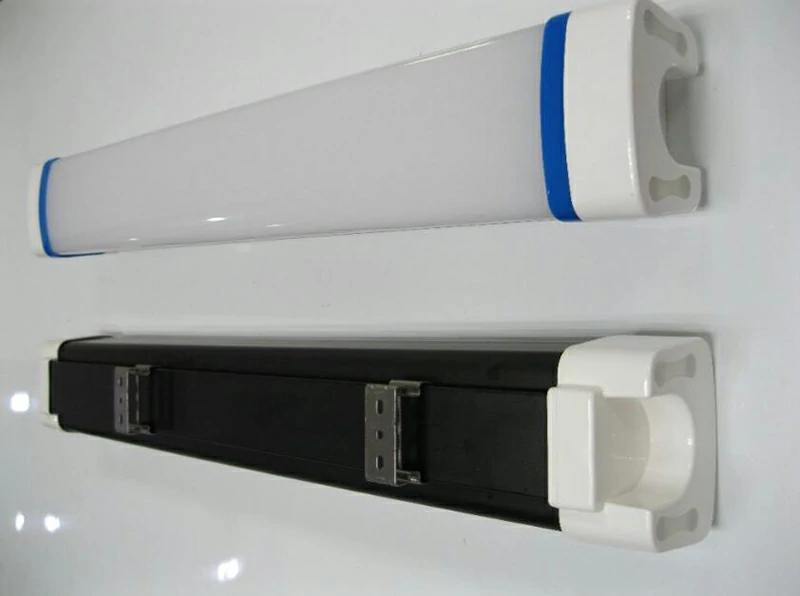

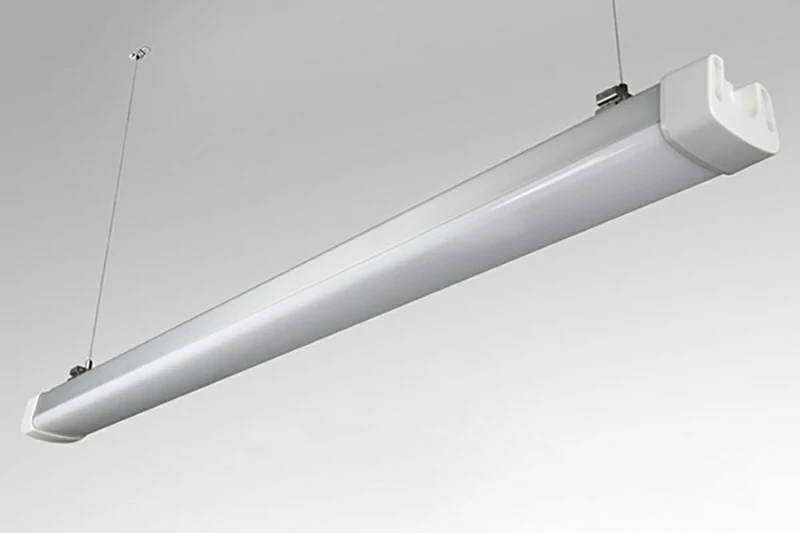

LED Tri-Proof Light is simple structured and elegant designed, using aluminum profiles to reduce weight. Two sets of installation provide customer convenience, improving light utilization,can be used both indoor lighting and outdoor lighting,with wider lighting area than normal led tube or led linear lights.

Product Description

Features:
> Special driver try for replacement.
> Singe or Double wiring.
> IP 65 /IK10 Approval.
> Multiple Link with double wiring.

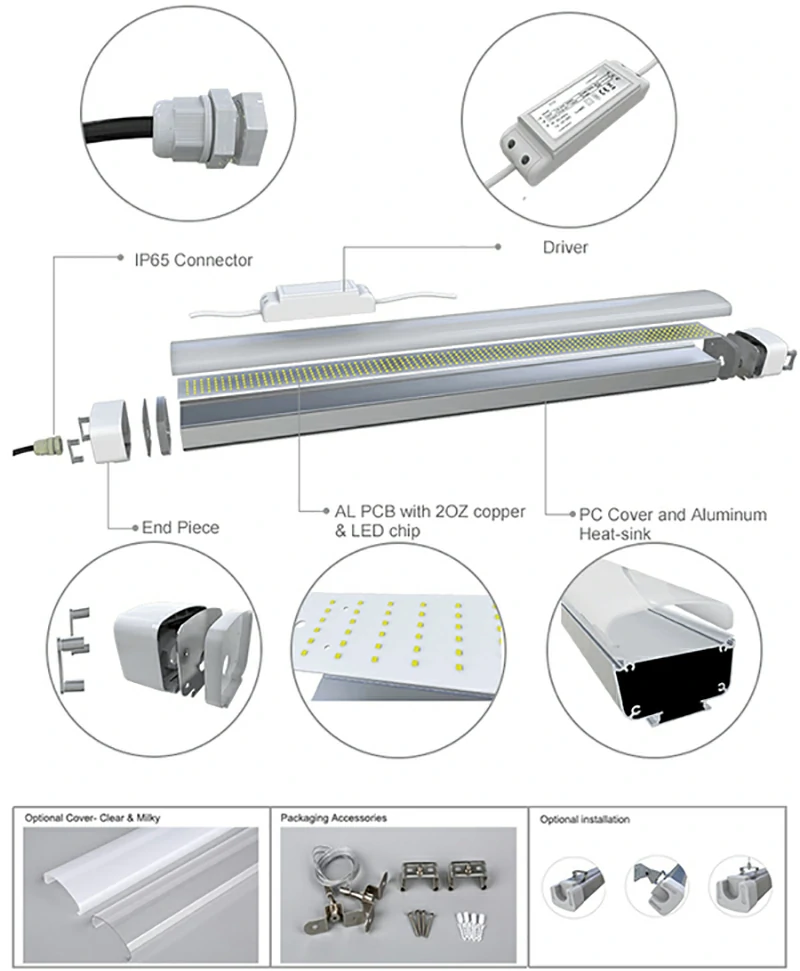

> Patent aluminum case as heatsink.
> 5 years warranty.

Electrical:
> Power: 2ft=20W, 4ft=40W, 5ft=60W
> Input voltage: AC100-130V, AC200-240V.
> Power Factor : >0.9, THD<15%.
> Power efficiency: >90%.
> Function : ON-OFF / 1-10V dimming / MS / DALI.
> Starting Time: <0.5S.
> Switching Cycle before Failure: >100,000 times.
> Microwave sensor option

Optical:
> High bright 2835 SMD LEDs, 100lm/W, 120-130lm/W, 140-150lm/W.
> CCT: WW:3000K NW:4000 PW:5000K CW:6000K, Tri-color:3000/5000K, Mixed:4000k.
> CRI: Ra80 or CRI90.
> Bean angle 120°.
> Cover: Clear or Milky PC
Datasheet:
item
L=0.6M/2ft
L=1.2M/4ft
L=1.2M/4ft
L=1.5M/5ft
L=2.4M/8ft
Color Index
Ra>80 OR Ra>90
Color Temperature
Single color:WW:3000K NW:4000 PW:5000K CW:6000K
Tri-color:3000/5000K, Mixed:4000k
Beam Angle:120 Degree
Power Factor:PF>0.95
Input Voltage:AC100~277V/50Hz
Working Voltage:Constant DC36~42V
Protection Class:IP65 | IK10
Temperature:Operation:-15°C~+50°C Storage:-25°C~+55°C
Life Span:50,000 hours
Warranty:5 Years
