Specification:

Model Name: Integrated T8V-Shaped LED Tube Lights

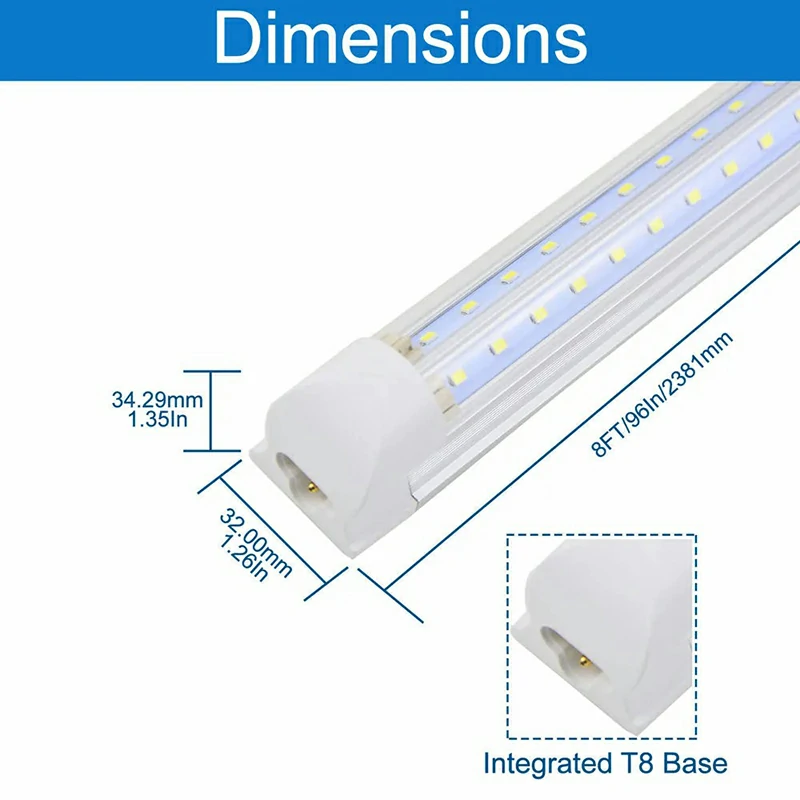

Length: 2FT /3FT / 4FT / 5FT / 6FT / 8FT

Power:

2FT 18W

4FT 36W 2 ROWS / 48W 4 ROWS

5FT 48W

6FT 56W

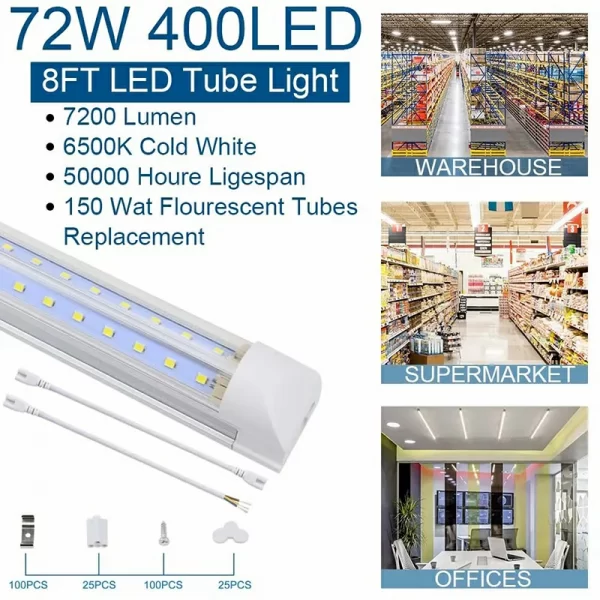

8FT 72W 2 ROWS / 120W 4 ROWS

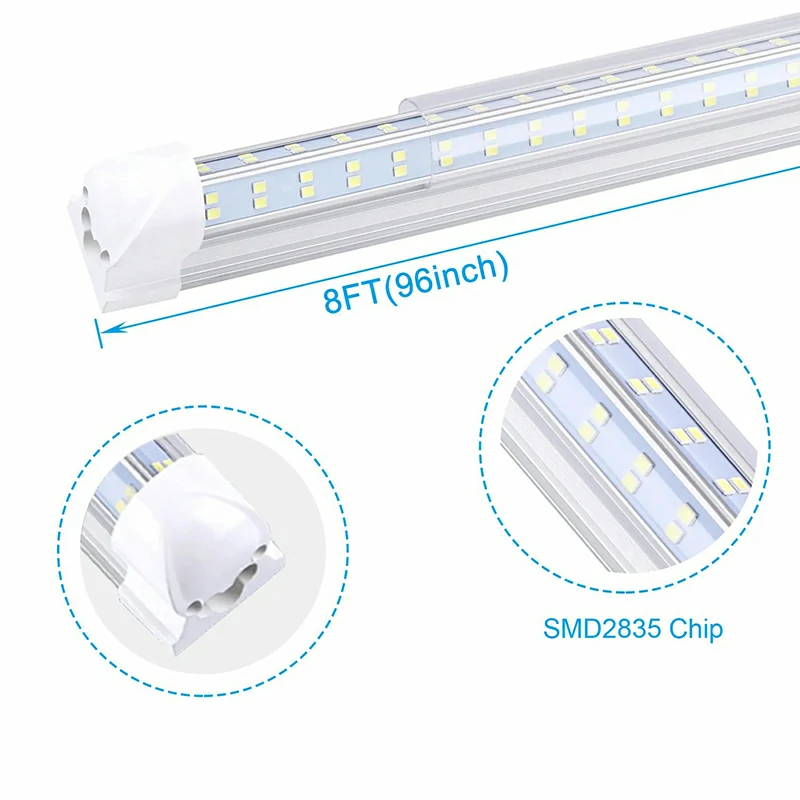

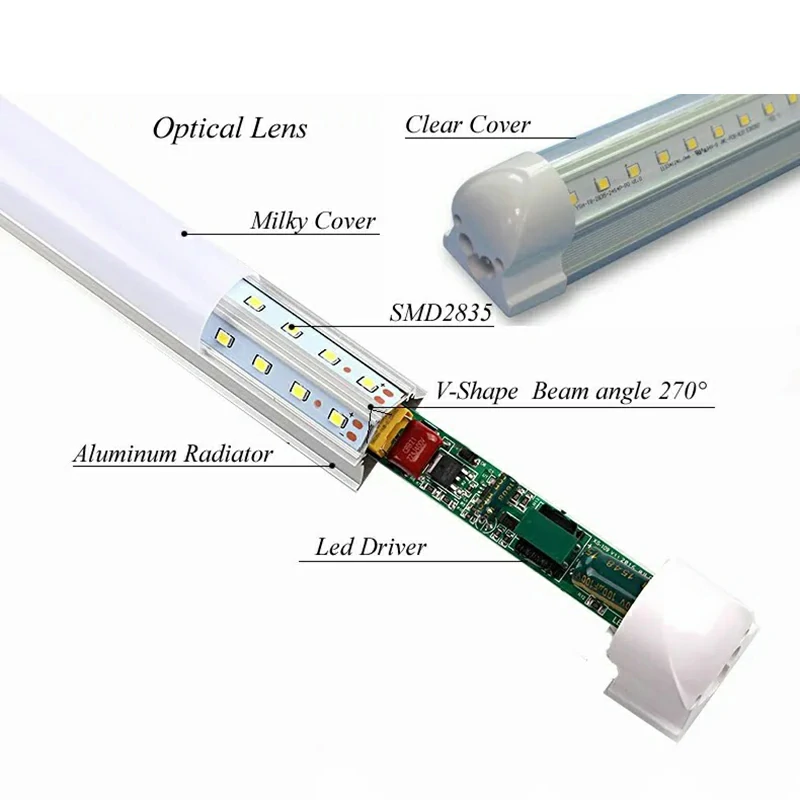

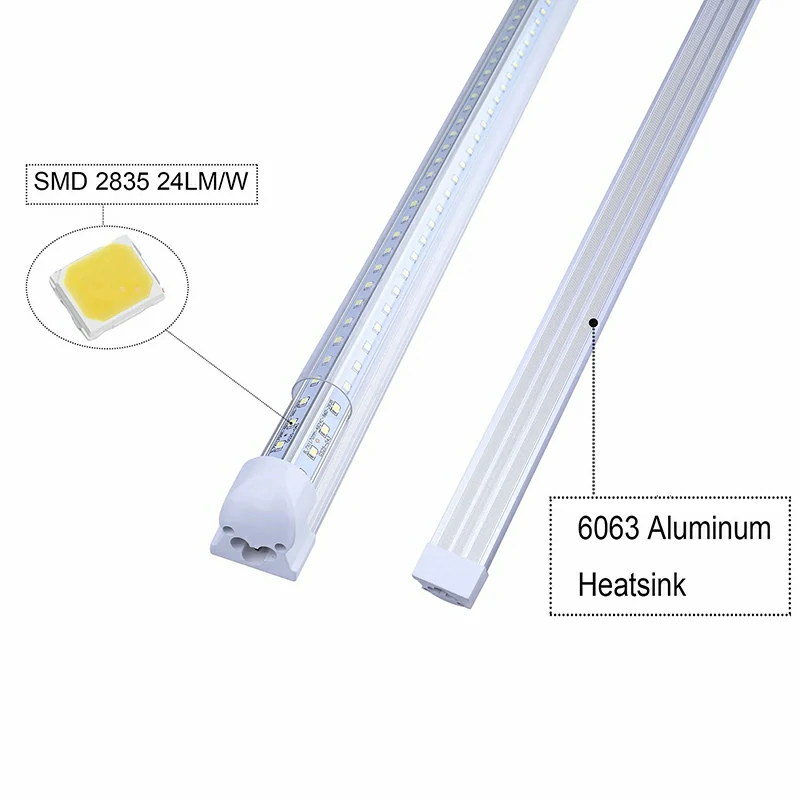

LED Source: SMD2835 Chip

Lumens:100 -110Lm/W

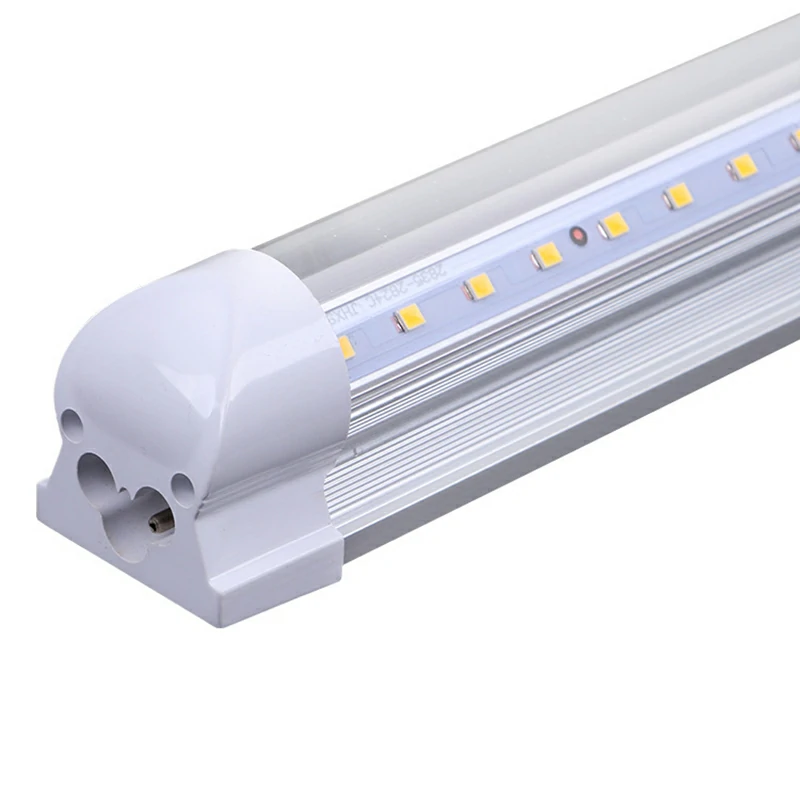

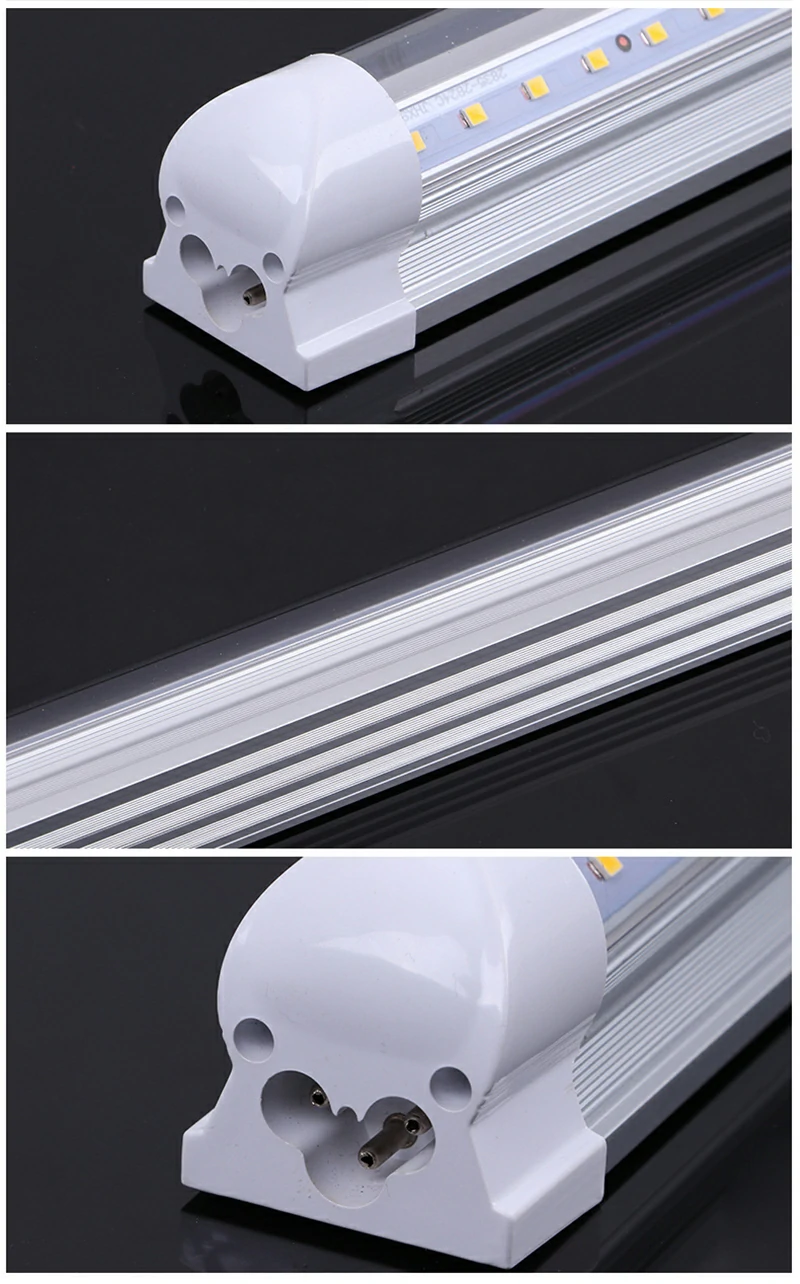

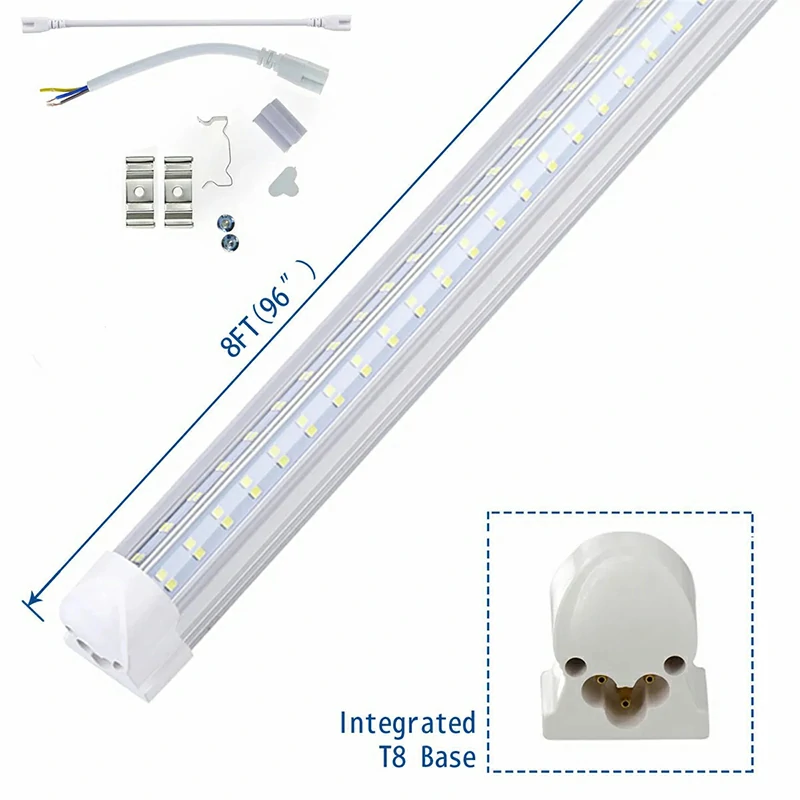

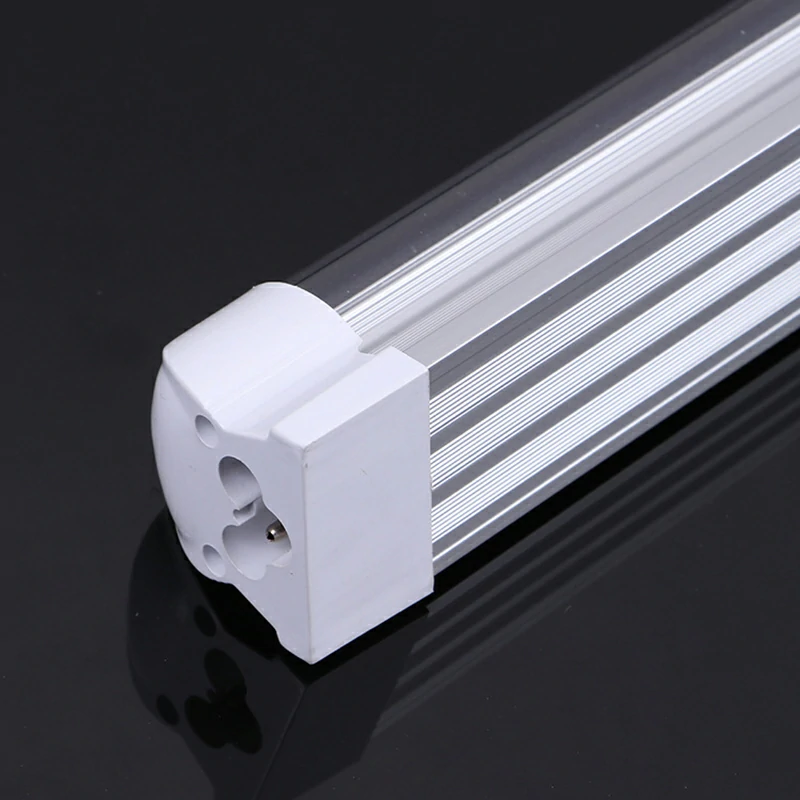

Base Type: Integrated (With Bracket)

Beam Angle: 270 Degree

Voltage: AC85-265V

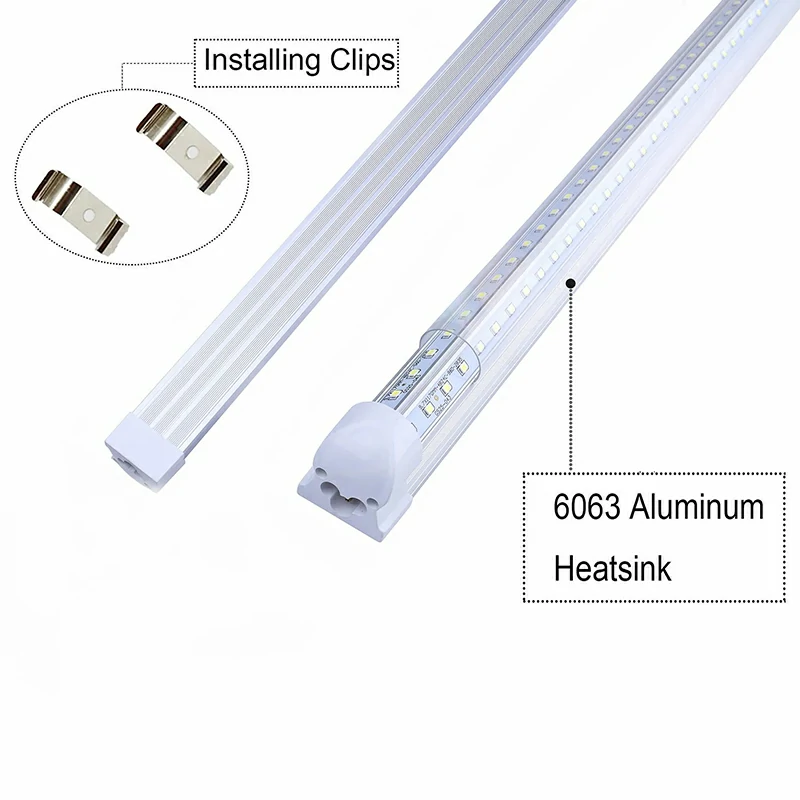

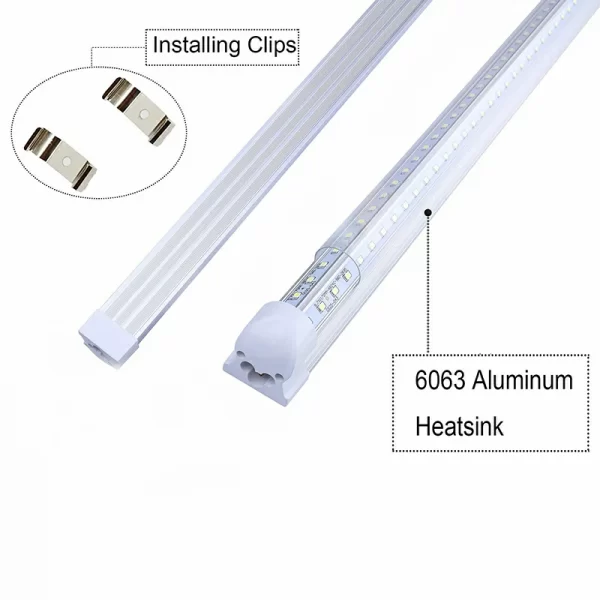

Housing material: Aluminum

Drive: Built-in drive

CRI: Ra70 , Ra80

Power factor:>0.90

Operation temperature: -20C to 50C

Life: 50,000 hours

Frequency: 60Hz to 50Hz

Warranty:3 Years

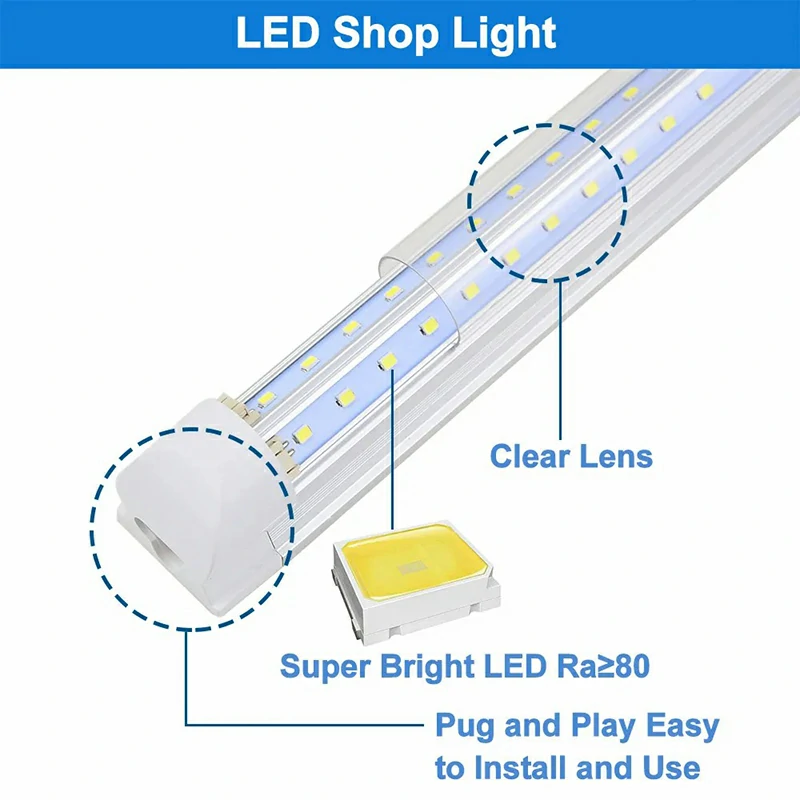

PC cover: Clear

Color temperature: Cold White (6000K-6500K)

Advantages:

270 Degree angle design, which shed more light on your products to make much brighter

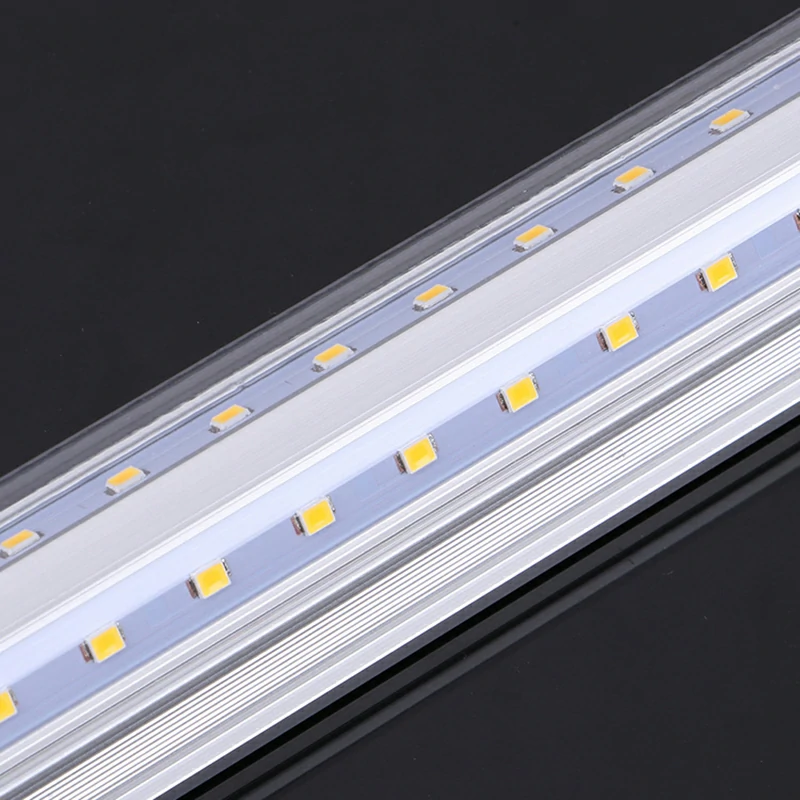

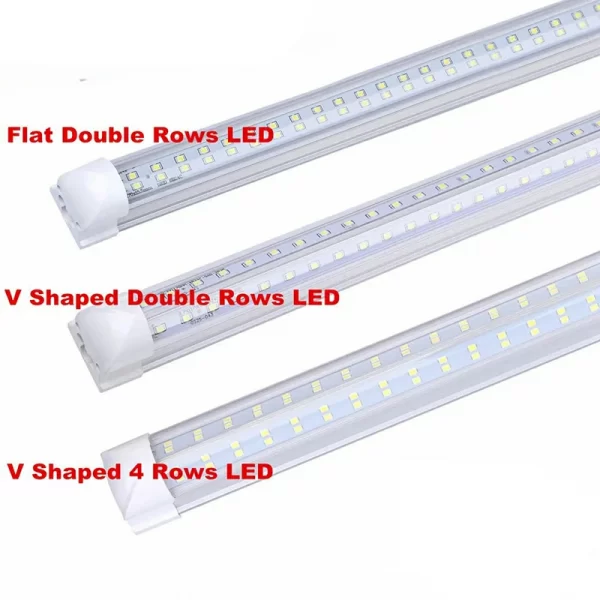

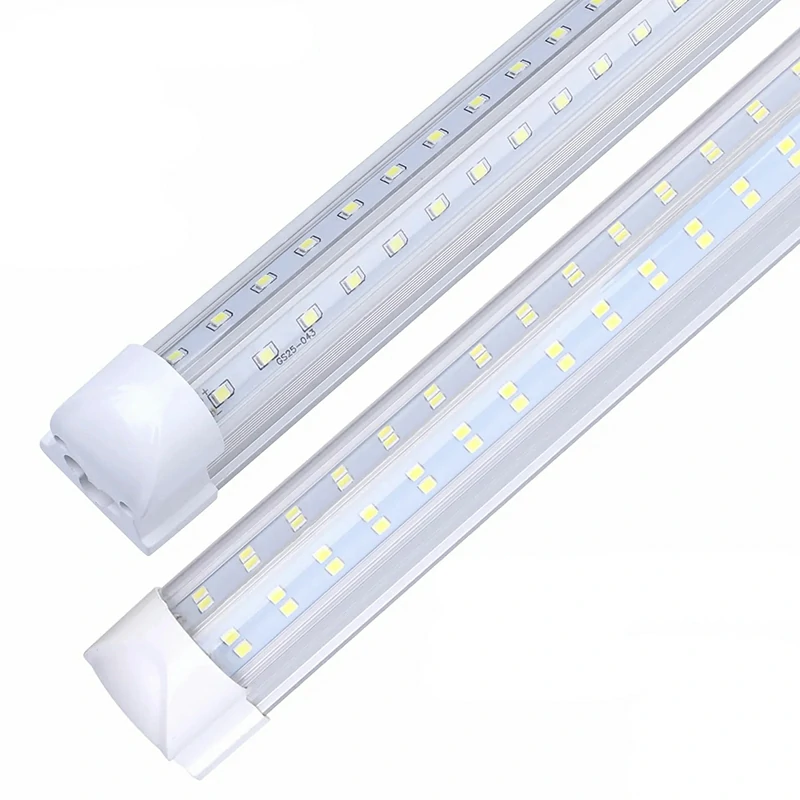

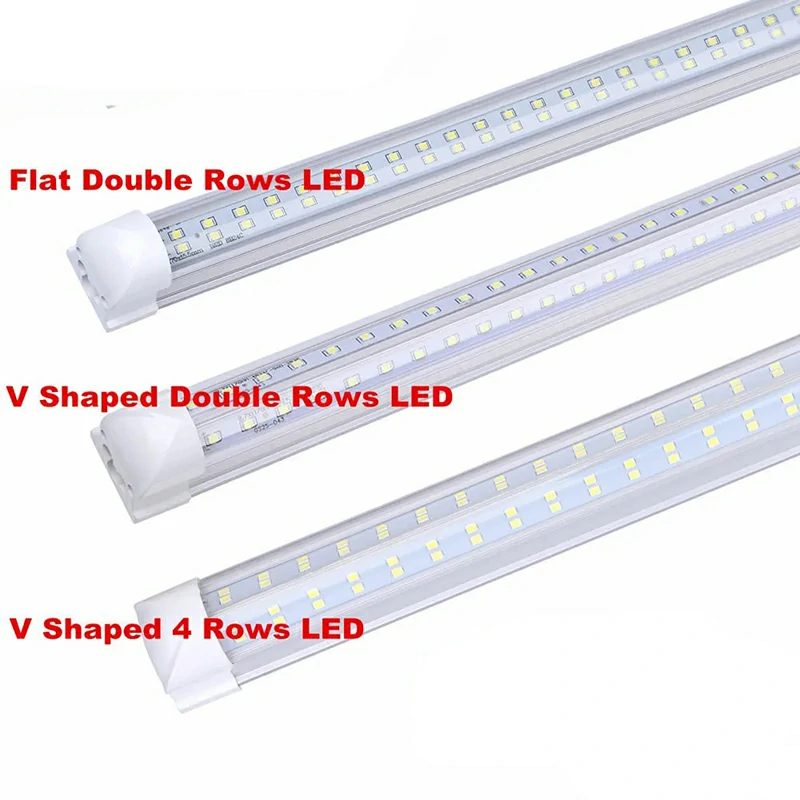

Double row LED,Six row, which give more light output

Clear cover, which emits more light than frosted cover

Cut Energy Costs by 60-80%

Lamp Lifespan: 50,000 hrs

Bright Light output

Mercury free, No Health Hazards

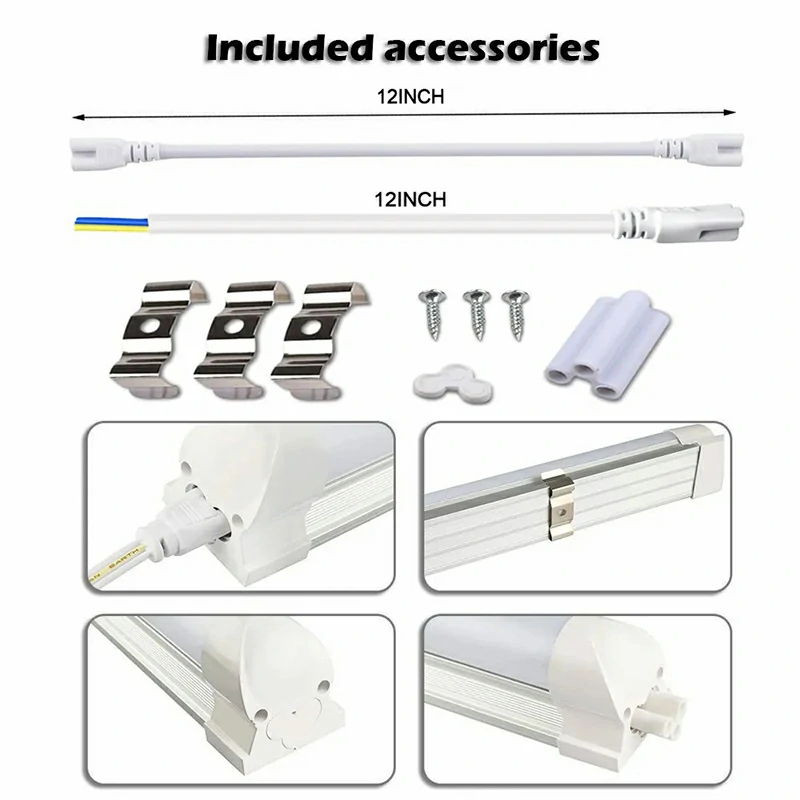

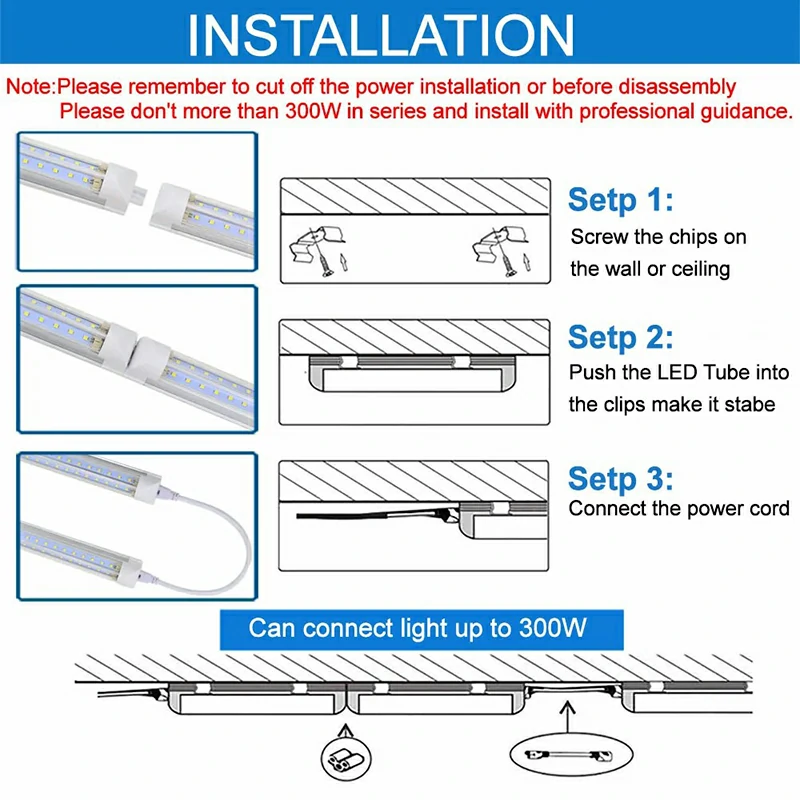

Easy Installation:

1. Remove Old Fixture (If needed)

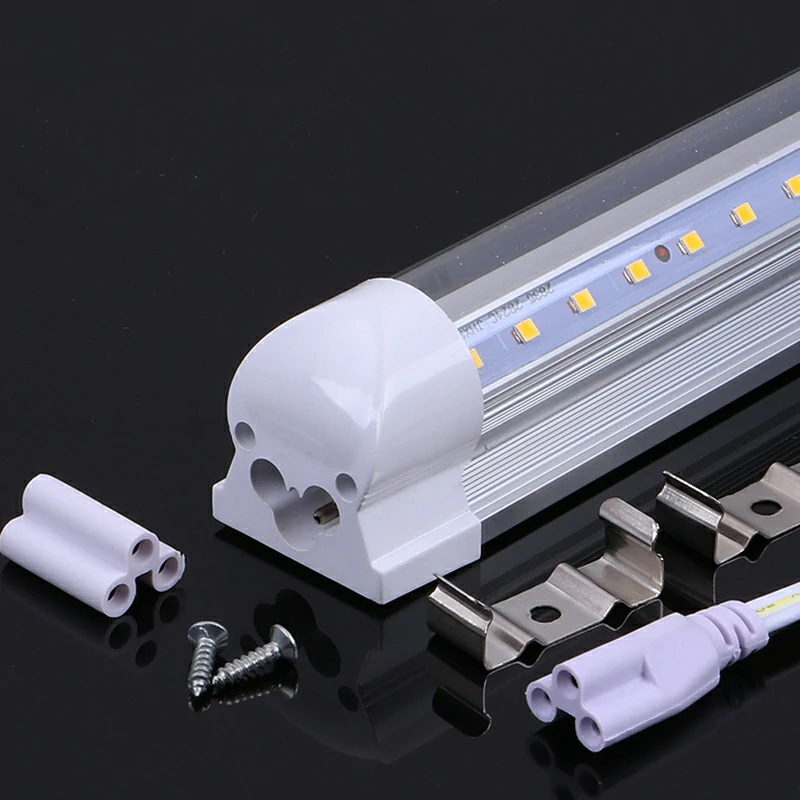

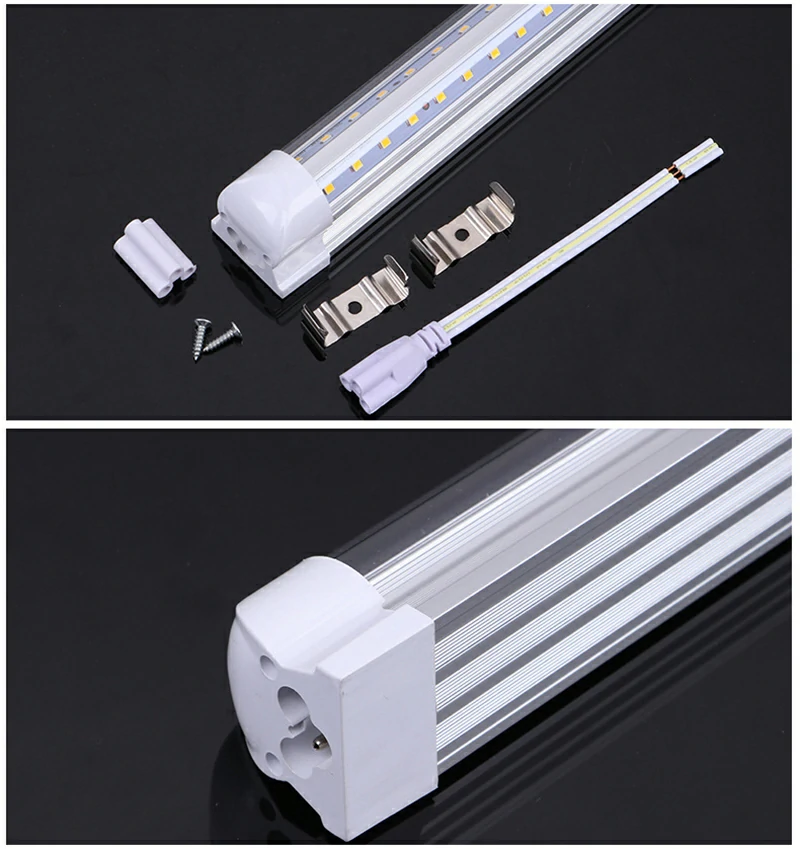

2. Install Mounting Clips to Doors

3. Snap LED Tube Light into Mounting

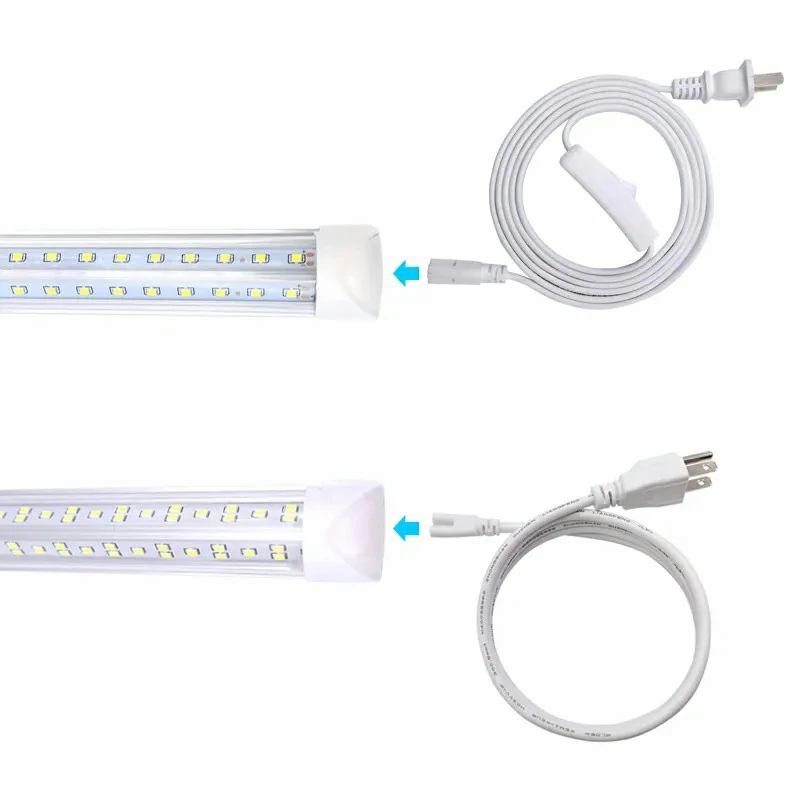

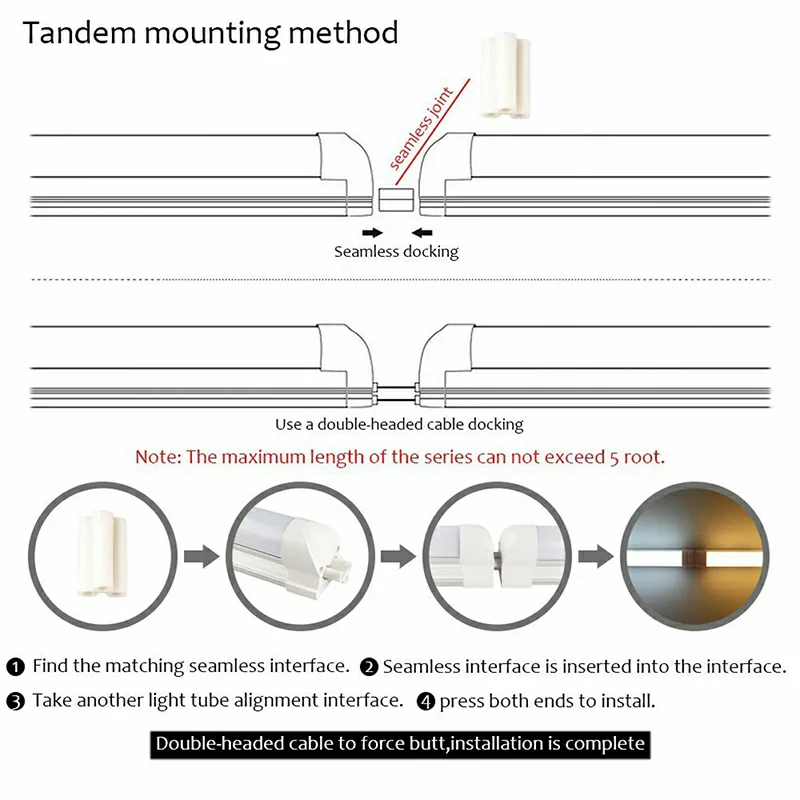

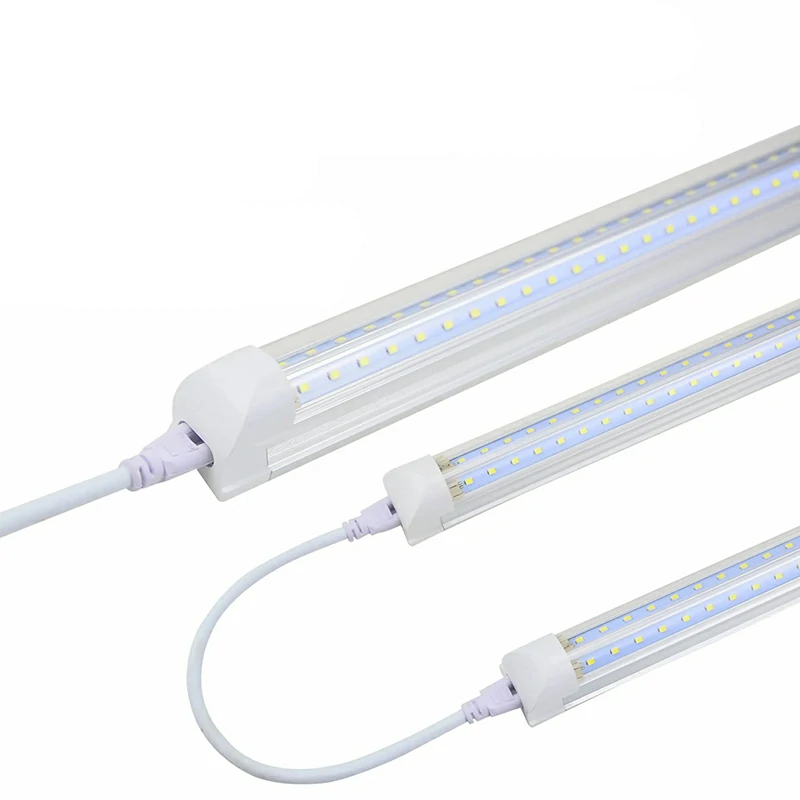

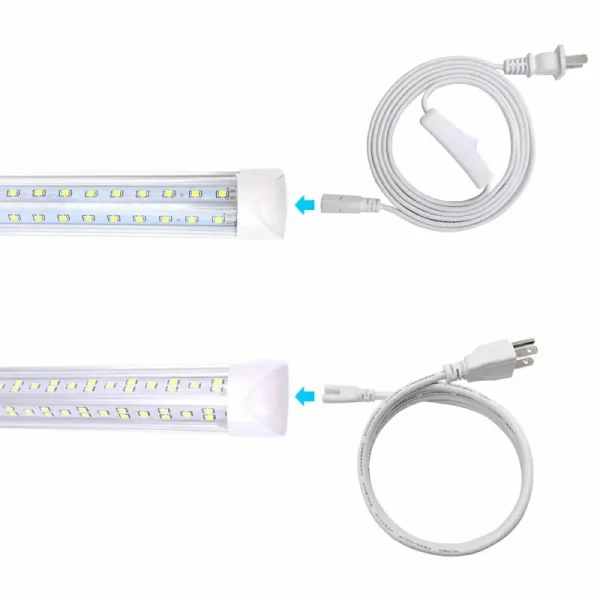

4. For multiple lights installation, Connect other end of the Tube light output to second light input and so on, You can connect 4 Tube lights utmost with one power source

5. Connect to Power Source

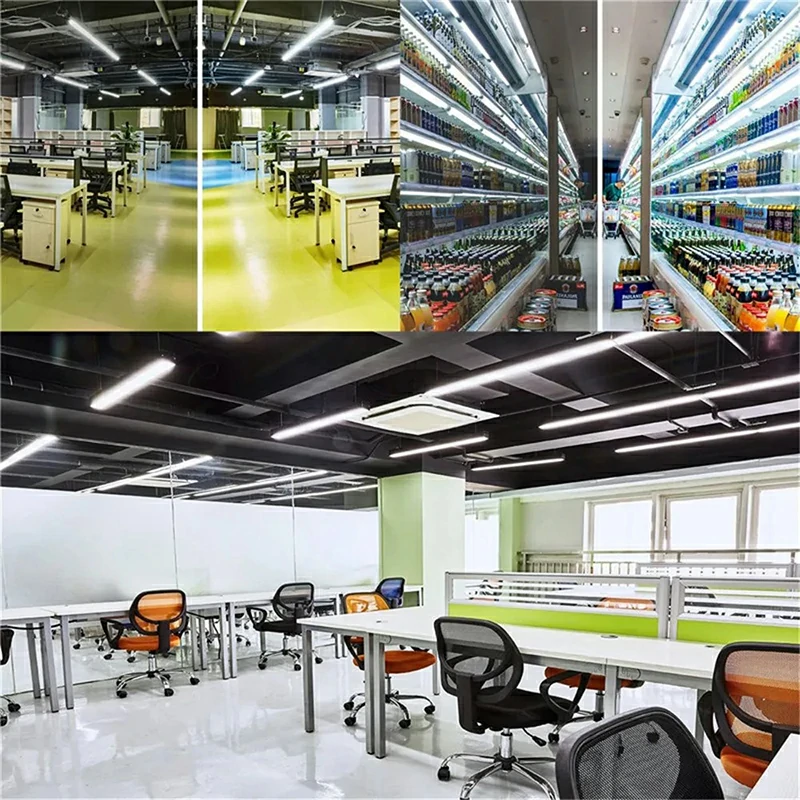

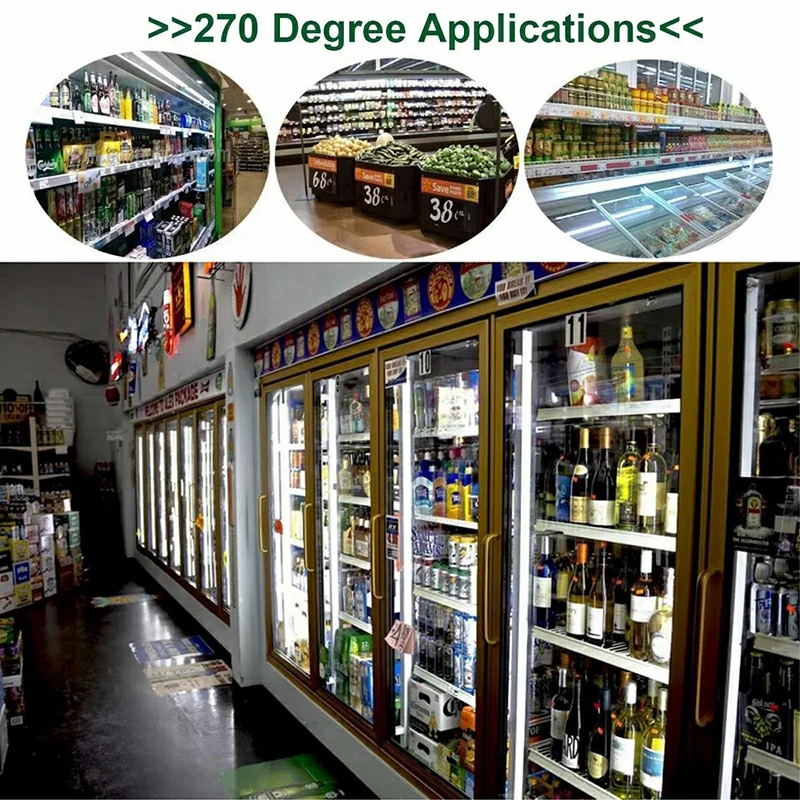

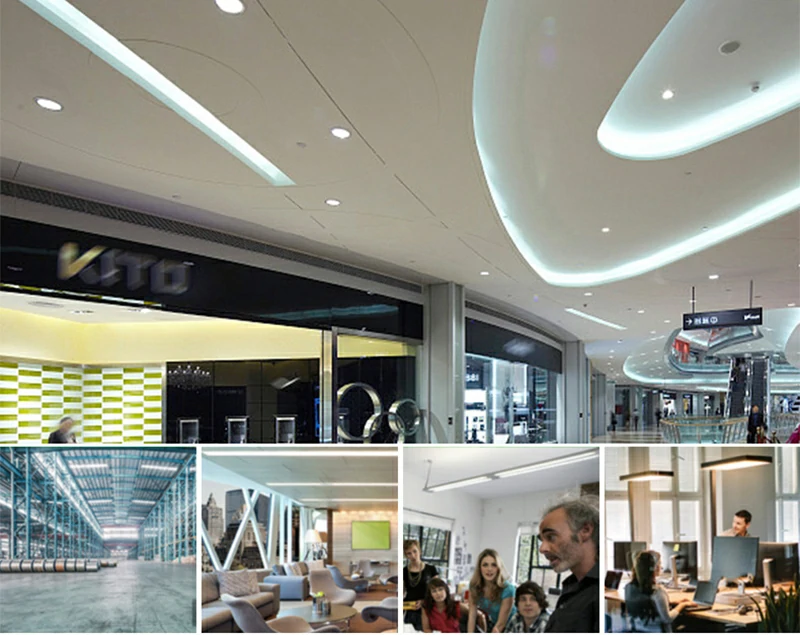

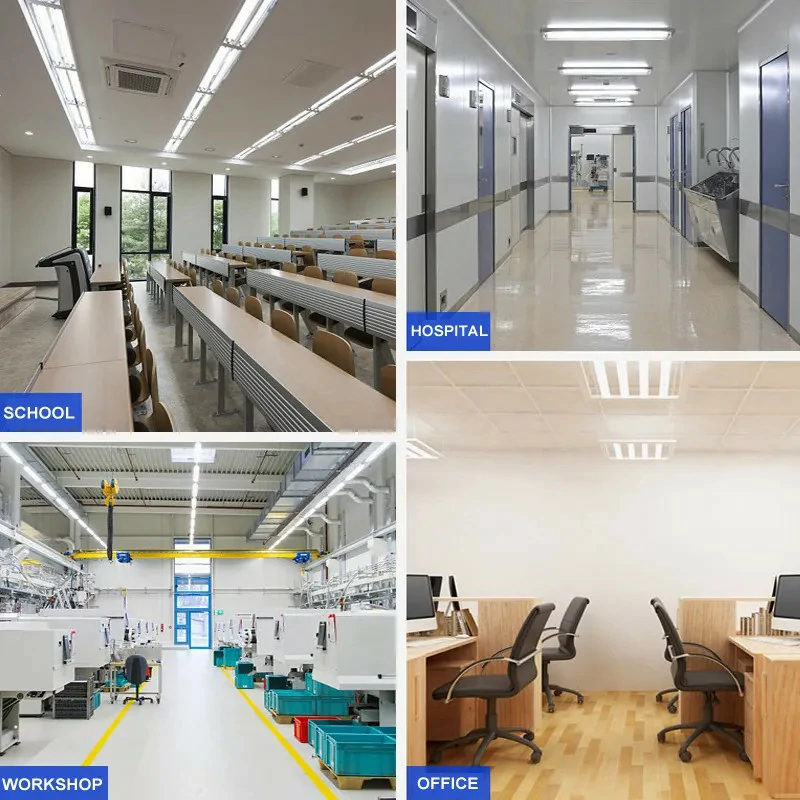

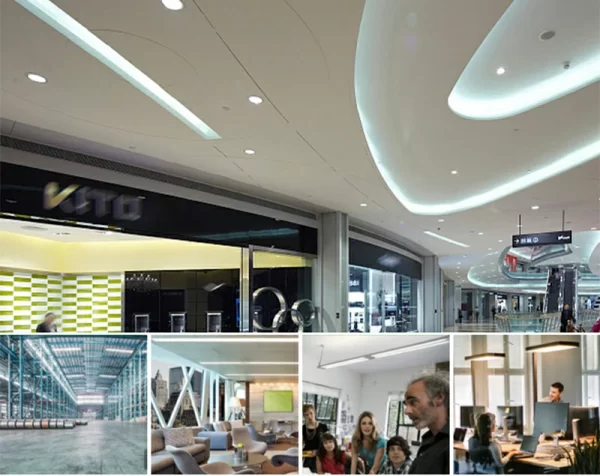

Application :

Reach-In Coolers / Freezers ; Deck Cases , Bakery Display Cases ; Meat Coolers , Industrial / Medical Refrigeration; Show Case , Super Market, School, Factory, Residential , Commercial ; Bus, shuttle, railcar passenger interiors,Places where need energy-saving and high-color rendering index lighting
