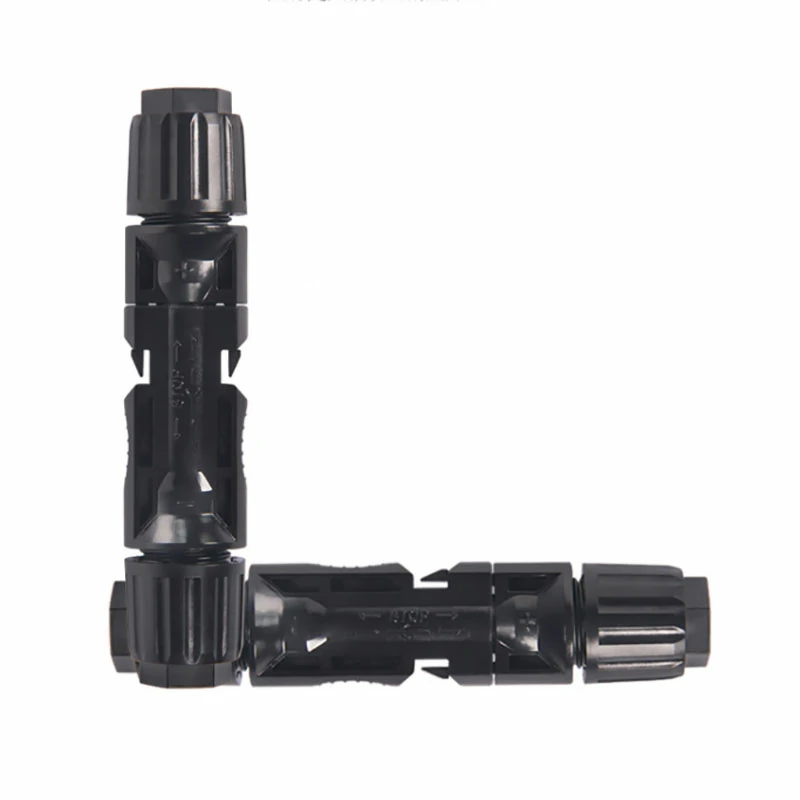

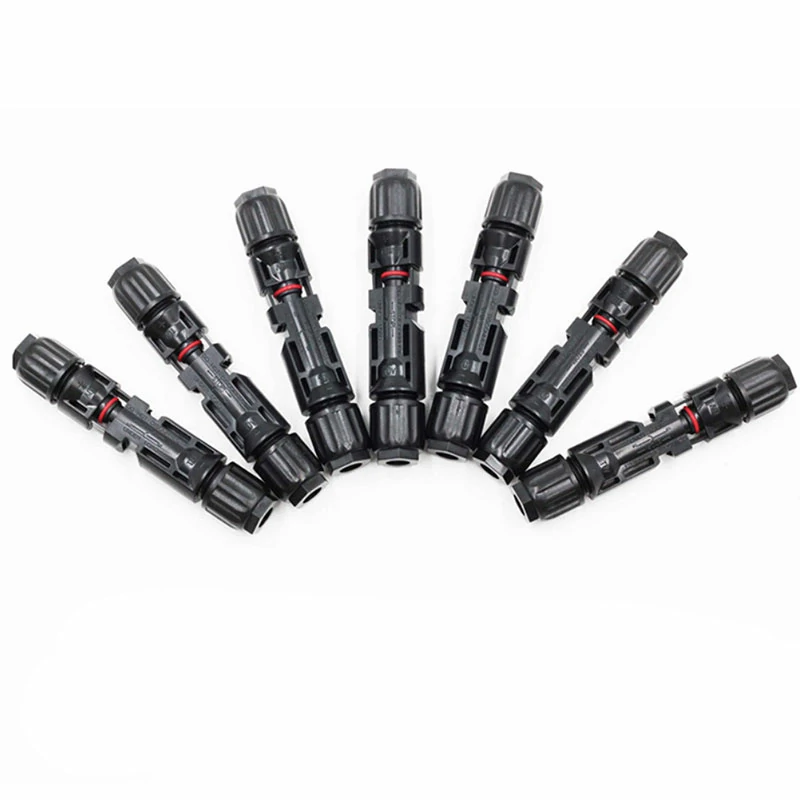

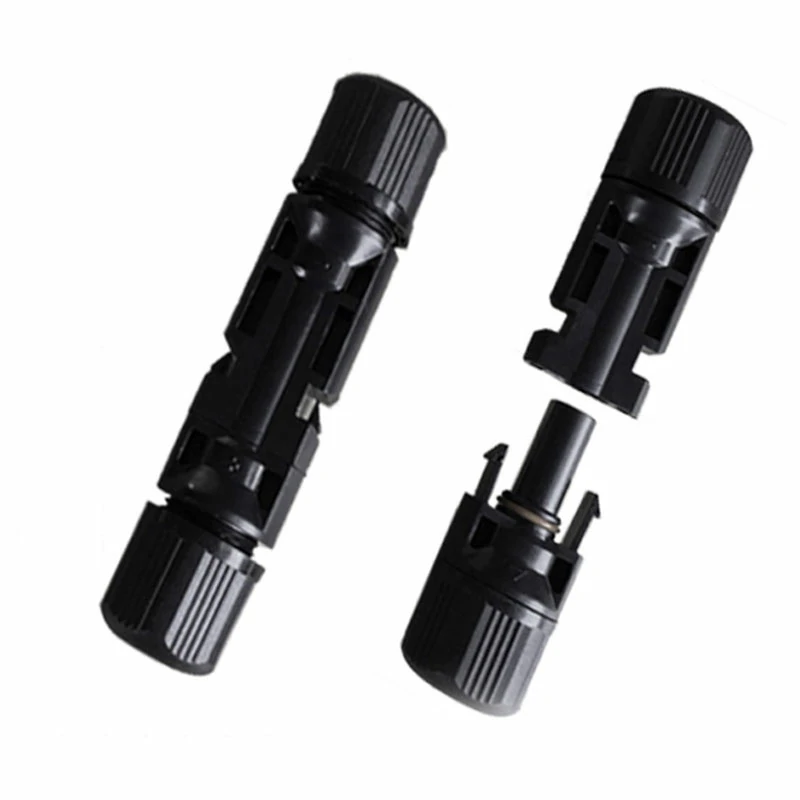

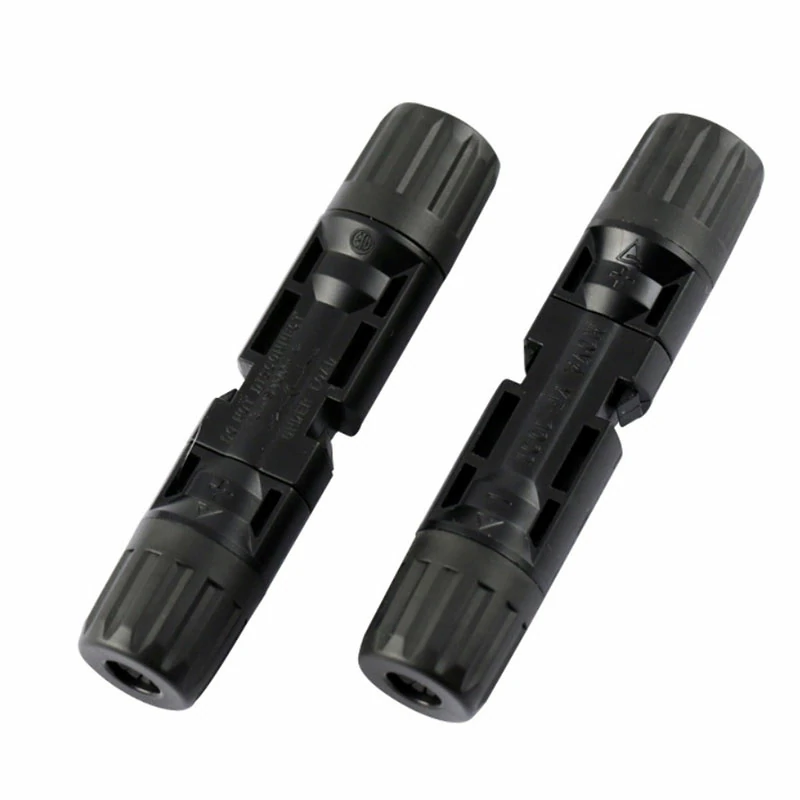

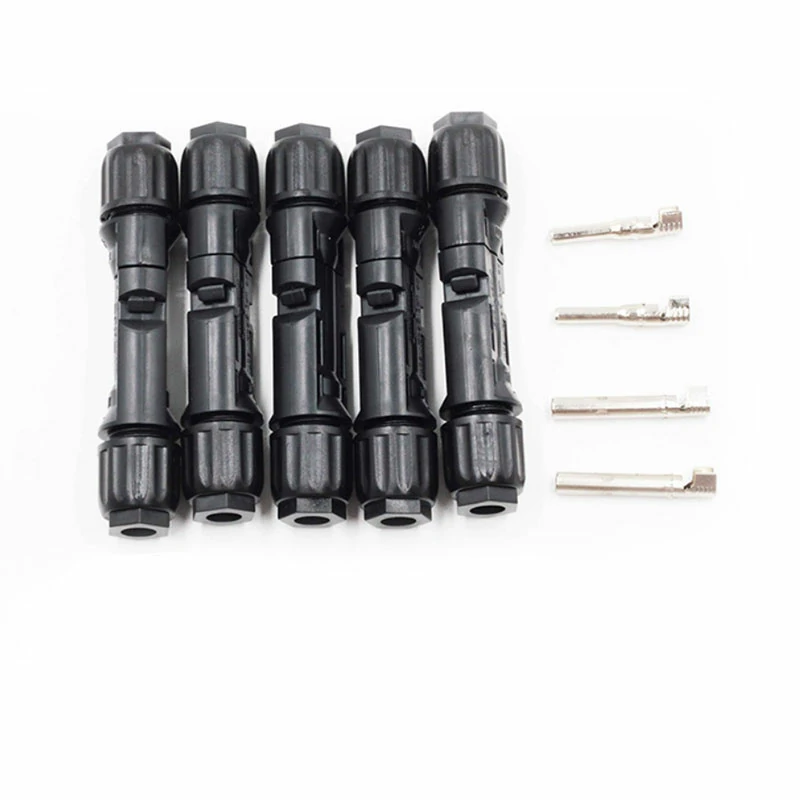

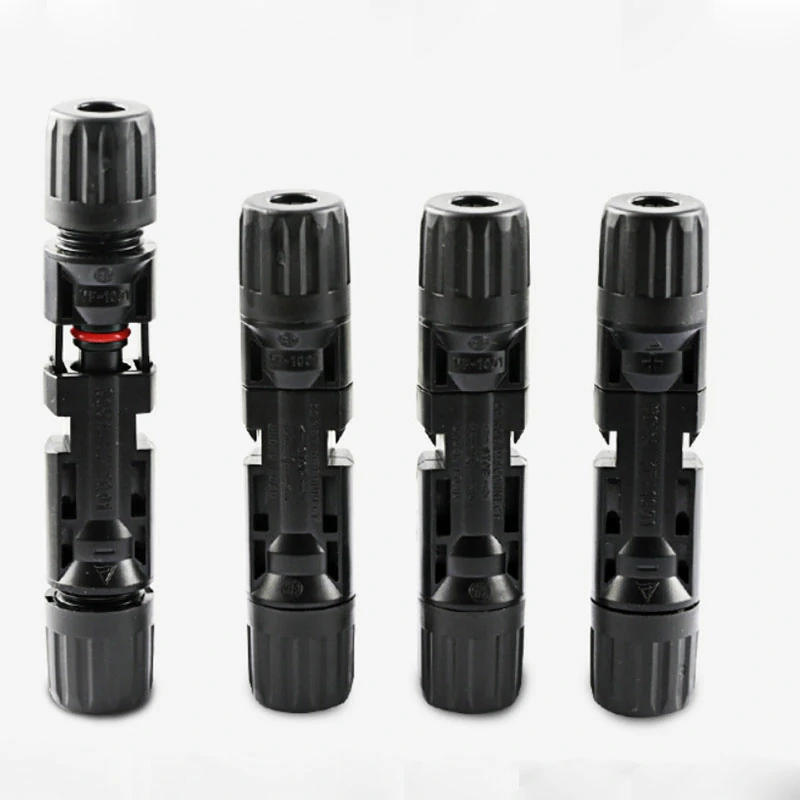

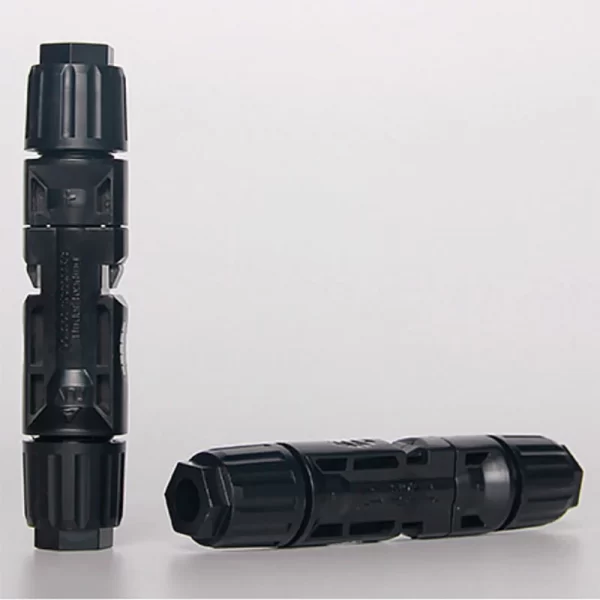

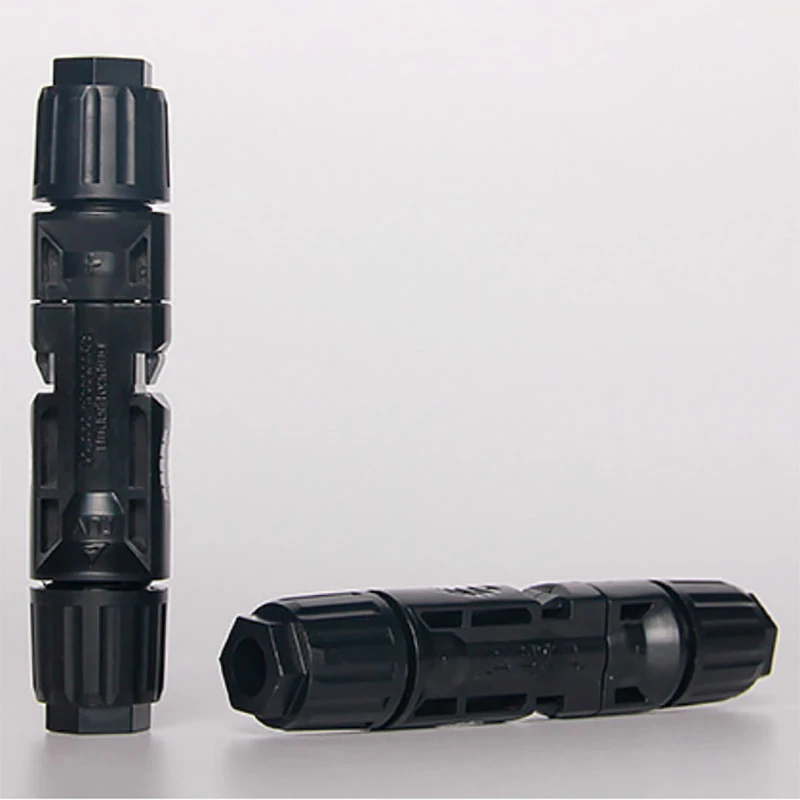

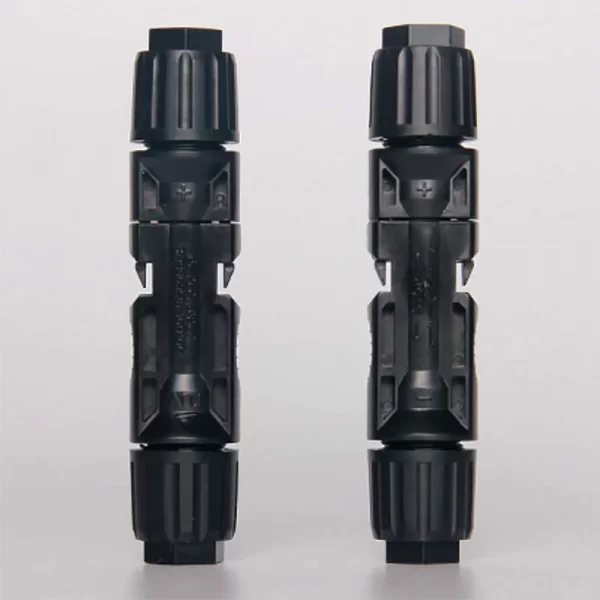

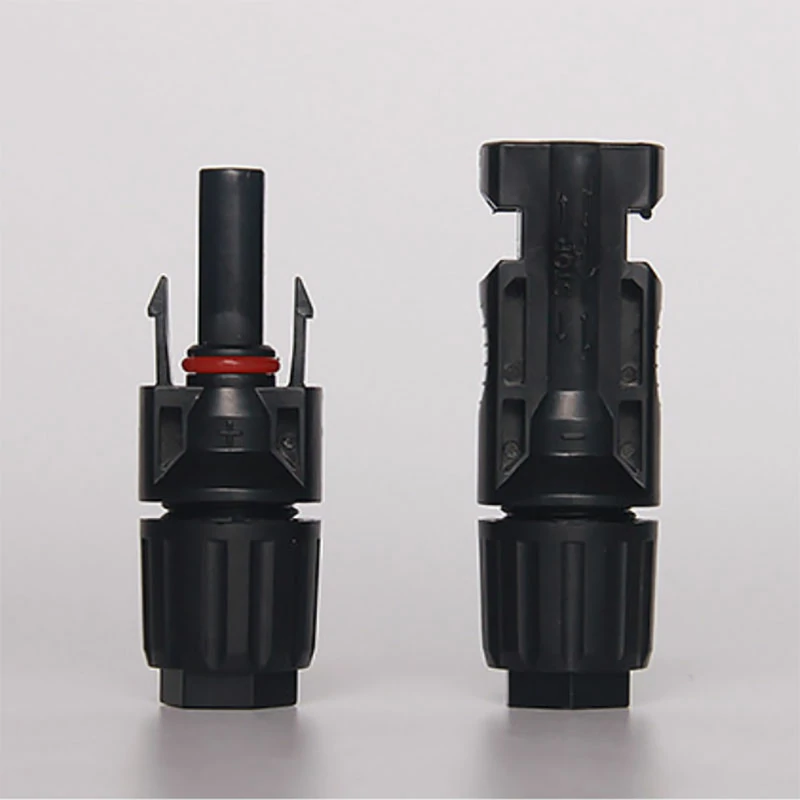

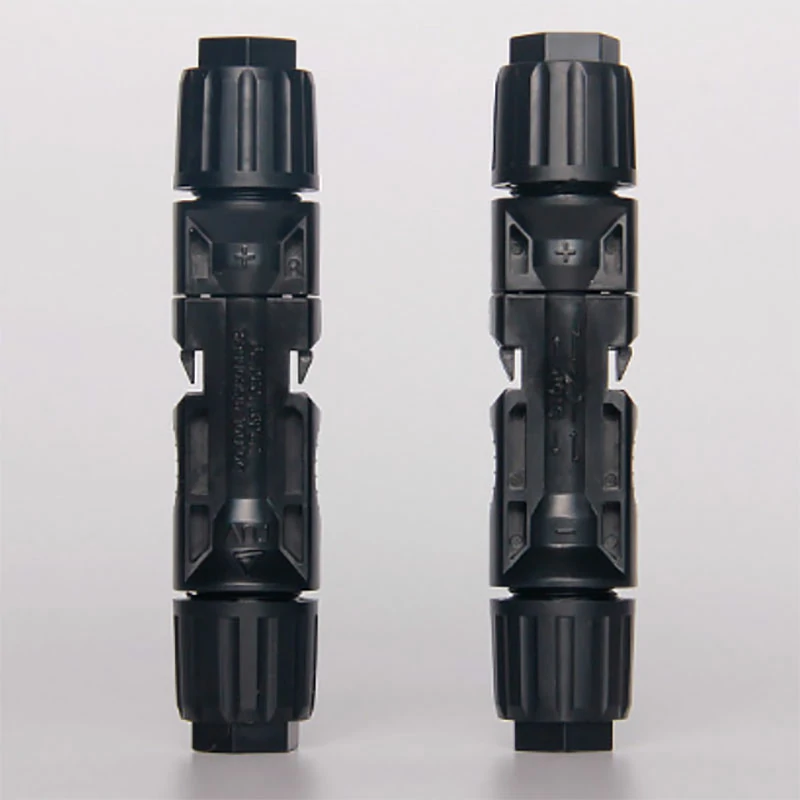

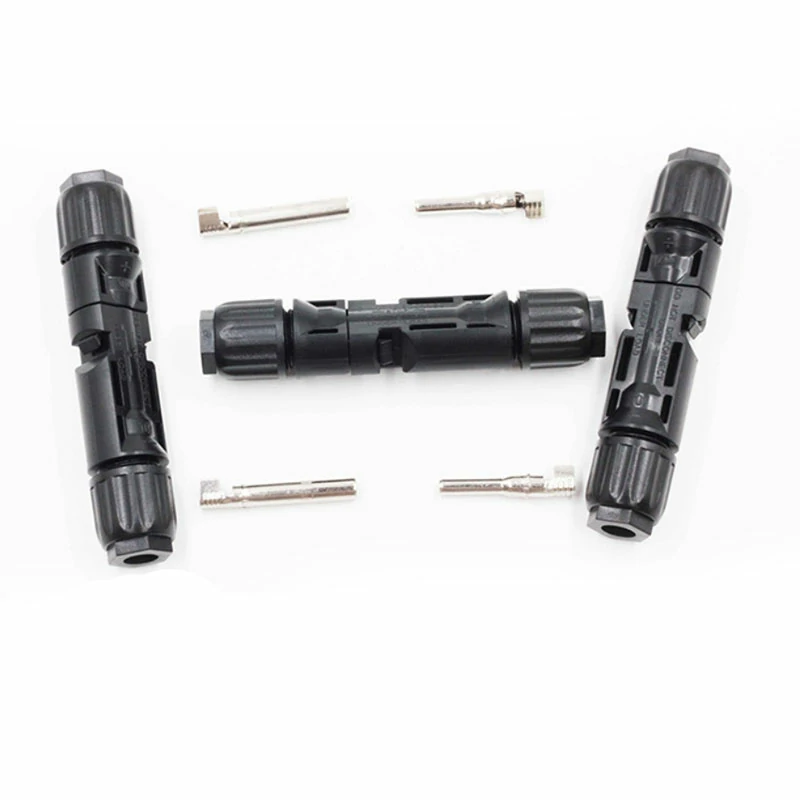

MC4 Photovoltaic Connector Male Female Plug Solar Photovoltaic Board Waterproof Joint Photovoltaic Cable Connector Accessories

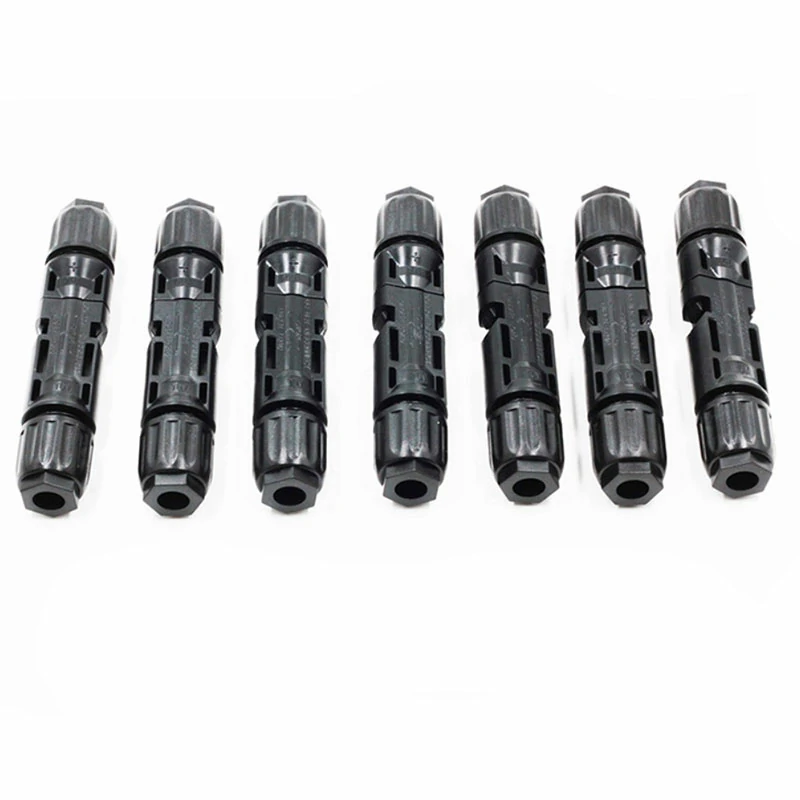

100pairs/lot(1lot = 100pairs)

MC4 Photovoltaic Connector Male Female Plug Solar Photovoltaic Board Waterproof Joint Photovoltaic Cable Connector Accessories

Rated voltage: 1000 V

Rated pulse voltage: 1000 V

Test voltage: 6 kV (50 Hz)

Applicable cables: 10, 12, 14 AWG (2.5mm2/4mm2/6mm2;)



Category: Tags: , , , ,

Description

MC4 Photovoltaic Connector Male Female Plug Solar Photovoltaic Board Waterproof Joint Photovoltaic Cable Connector Accessories

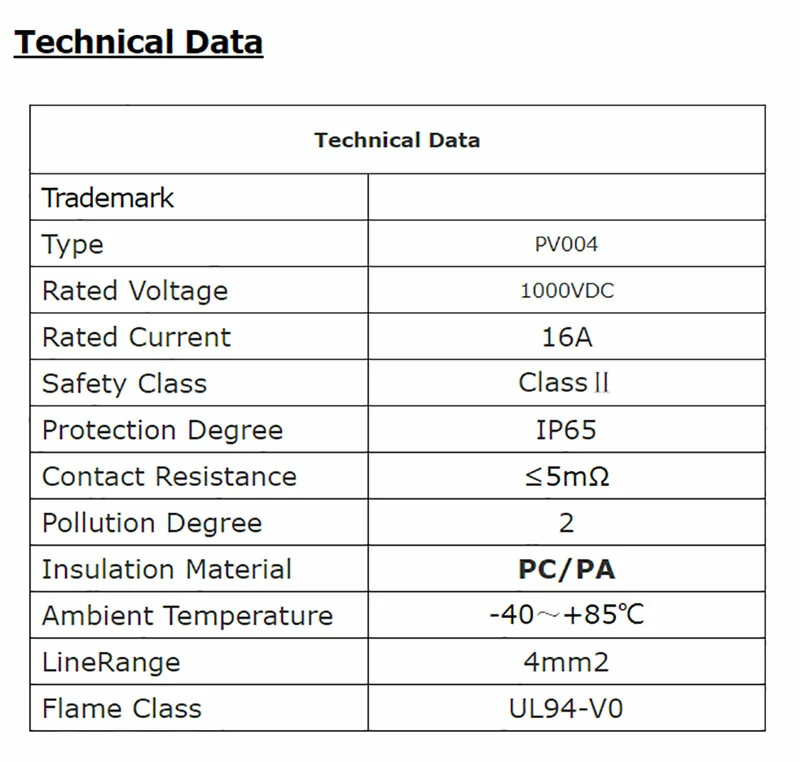

Specification

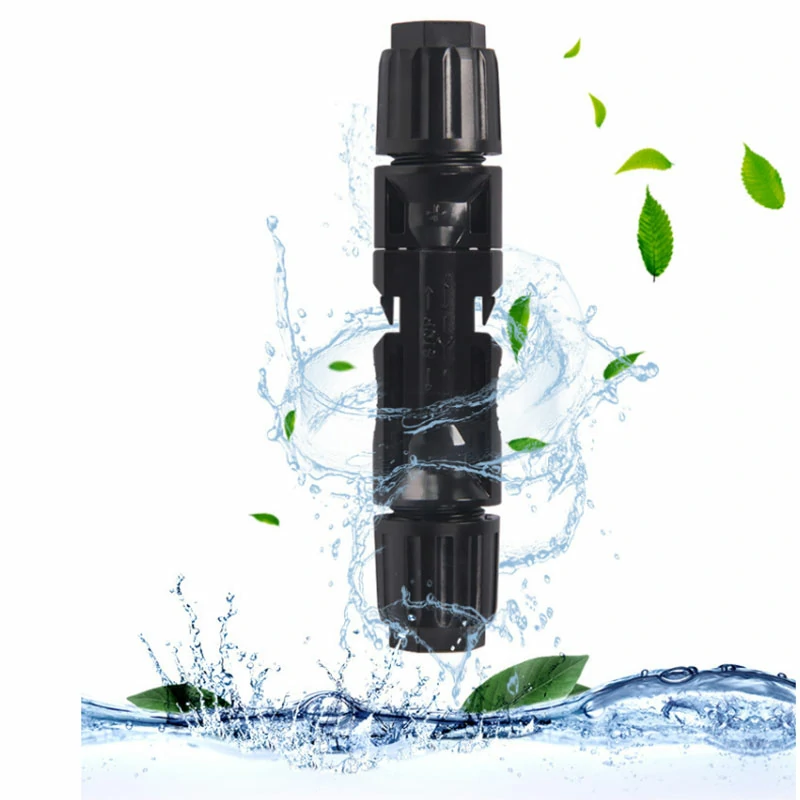

Waterproof grade: IP67 high-strength PPO shell, dustproof, antioxidant, and selected imported raw materials,

Attention: The metal parts are galvanized, please note in the order if silver plating is required.

Rated voltage: 1000 V

Rated pulse voltage: 1000 V

Test voltage: 6 kV (50 Hz)

Applicable cables: 10, 12, 14 AWG (2.5mm2/4mm2/6mm2;)

Rated current: 24A-14 AWG (2.5mm2)

30A-12＆10 AWG（4mm2＆6mm 2）

Protection level: IP67

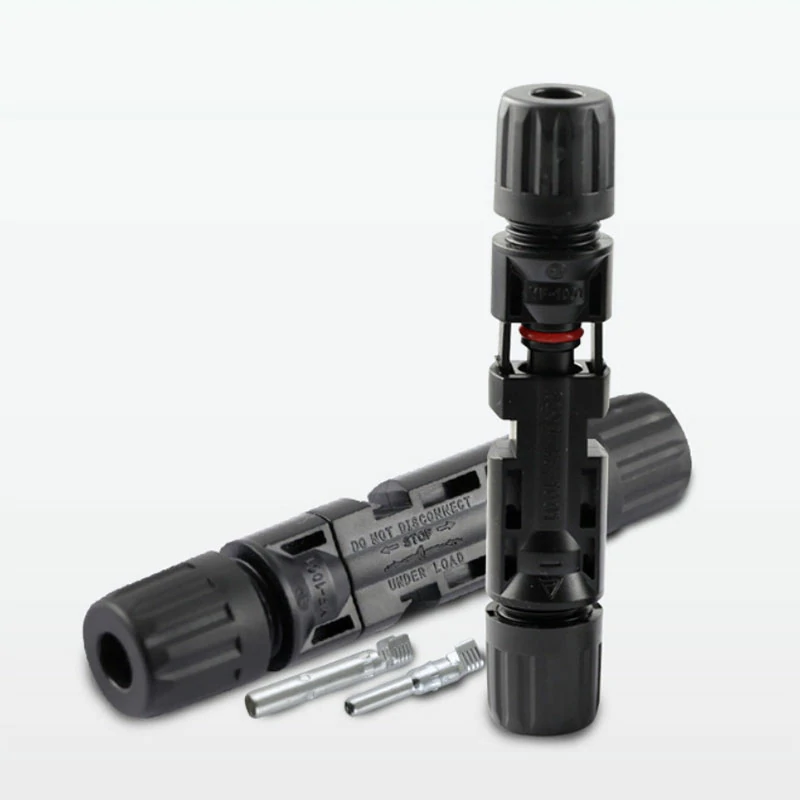

Contact material: copper, galvanized

Insulation material: PC/PA

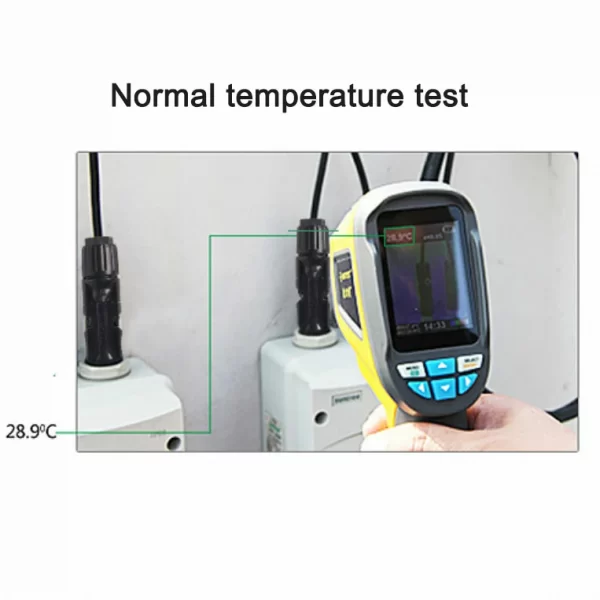

Working temperature: -40 ° C? 9? 1+ 90°C

Safety level: II

Flame level: UL94-V0

Contact resistance: ≤ 5m Ω

Insertion/extraction force: ≤ 50N/≥ 50N

Locking system: embedded

Additional information

Version

A, B
